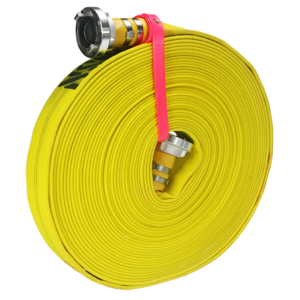

RANGER 800
RANGER 800
The Proven Percolating Hose
The RANGER 800 Fire Hose has a unique lining of compounded rubber latex to significantly increase the life of Ranger Hose and still maintain the self-protecting features of percolation. Available in diameters from 25mm, 38mm & 65mm with lengths up to 30 metres.
The RANGER 800 complies with AS2792 Class “H”, designed to withstand exceptionally high pressure while maintaining the self-protecting features of percolation.
The RANGER 800 has a burst pressure of 5250kPa and a working pressure of 2100kPa having an all synthetic jacket, the Ranger 800 is unaffected by mildew and will retain its strength and durability under all climatic conditions.
Our Range
25mm Fire Hose
38mm Fire Hose
65mm Fire Hose
Specifications
Measurements
| Diameter: | 25mm (1”), 38mm (1.5”) and 65mm (2.56”) |
| Length: | This hose is available in any length up to 30m |
| Jacket: | 100% Polyester |
| Lining: | Rubber Latex |
| Lining Adhesion: | Lining material cannot be separated from the jacket. |
| Working Pressure: | 2100kPa - 300PSI |
| Proof Pressure: | 3150kPa - 450PSI |
| Burst Pressure: | 5250kPa - 750PSI |
| Friction Loss: | At 345kPa 25mm: At 1.5l/s, (6.6kPa/m) 38mm: At 3 l/s (2.4kPa/m) 65mm: At 7.5 l/s (1.5kPa/m) |
| Elongation: | At 70kPa – 1200kPa 25mm: 3.8% Length, 3.4% Circumference 38mm: 5.71% Length, 2.31% Circumference 65mm: 6.0% Length, 2.7% Circumference |
| Circumference Increase: | 70kPa – 1200kPa (2.25%) |
| Percolation: | At 700kPa 25mm: 6th to 10th min (225ml), 15th to 19th min (120ml) 38mm: 6th to 10th min (140ml), 15th to 19th min (150ml) 65mm: 6th to 10th min (580ml), 15th to 19th min (370ml) |
| Coil Weight: | Per 30m 25mm: Undyed (3.5kg), 25mm: Dyed (3.6kg) 38mm: Undyed (5.85kg), 25mm: Dyed (6.05kg) 65mm: Undyed (10.05kg), 25mm: Dyed (10.75kg) |
| Coil Diameter: | Per 30m 25mm (350mm), 38mm (370mm), 65mm (420mm) |
| Abrasion Test: | Passed Australian Standard AS2792-1992. |
| Repairability | For maximum performance after repair it is recommended that 'SPOT ON' repair materials are used. External vulcanised patch will allow maximum working pressure to be maintained. |
Construction
Features
- Easy Rolling
- Age Resistant
- Weather Durability
- Mildew Resistant
- Self Protecting Percolation
Dimensions
Available in: 25mm, 38 mm & 65mm
Burst Range
Burst Pressure: 5250kPa
Working Pressure: 2100kPa
Optional Colours
Yellow, Red, Blue
* Other colours available on application
